Sliding Pocket Doors

Glass doors that slide away into the wall. When they are open, the frames disappear and the whole opening is clear to the garden.

Home / Aluminium Doors / Aluminium Sliding Pocket Doors

What is a sliding pocket door?

A sliding pocket door is a glass door that slides into a pocket built inside the wall. When it is open the panels are hidden, so the whole opening is clear from the room to the garden, with no panels stacked in front of the view. They are also called pocket sliding doors, external pocket doors or pocket patio doors.

We make ours in Cortizo aluminium. COR Vision has a slim 20mm central interlock and double glazing. COR Vision Evolution takes panels up to 3500mm tall and wide, triple glazing and up to four tracks. The track can be recessed into the floor, so there is no raised threshold to step over.

A pocket door can open to one side, part in the middle into two pockets, stack several panels into one deep pocket, or meet at a corner with no post. The drawings in the Technical Specifications tab below show each layout. Compare them with our other aluminium sliding doors, or see the COR Vision Evolution sliding door.

Contact Us
Aluminium sliding pocket doors for smooth transition between living room and balcony.Aluminium sliding pocket doors for smooth transition between living room and balcony.
Aluminium sliding pocket doors with large glass panels in a modern dining area.Aluminium sliding pocket doors with large glass panels in a modern dining area.

Planning a pocket door

The pocket sits inside the wall, so it has to be planned before the wall is built or opened up. These are the things to agree early:

  • Wall length Each pocket needs a solid length of wall at least as wide as the panel that slides into it.
  • Wall depth The wall must be deep enough for the frame and its tracks. A stacking pocket, with a track for each panel, needs a deeper wall.
  • Structure above The lintel or steel spans the opening and the pocket together.
  • Threshold A floor track on an outside door is designed in with its drainage, so the floor can run level inside and out.

We work with your architect or builder on the pocket sizes and supply drawings, so the opening is built right first time.

Ask us about your opening

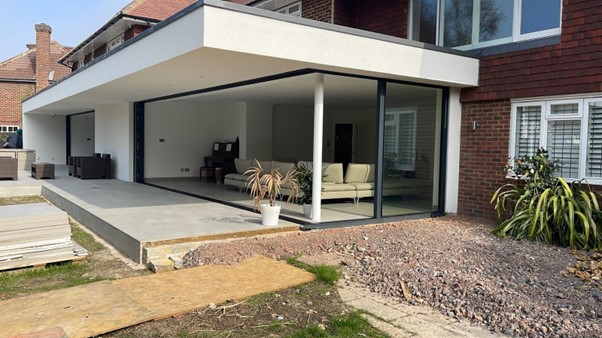

Rear extension with slimline sliding pocket doors open onto a lawnRear extension with slimline sliding pocket doors open onto a lawn
Corner sliding pocket doors under an overhanging roof, opening onto a terraceCorner sliding pocket doors under an overhanging roof, opening onto a terrace

Technical Specifications

Pocket door layouts

Four ways to build a pocket sliding door. Each drawing shows the wall from the front and from above, so you can see where the glass goes when the doors are open.

Single pocket, one side
Single pocket, one side pocket door layoutOne large panel slides fully into a pocket built into one wall. When it is open, the frame disappears and nothing stands in the opening.Front viewpocket in wallclear openingFrom abovegardeninsideOne panel slides into a pocket on one side

One large panel slides fully into a pocket built into one wall. When it is open, the frame disappears and nothing stands in the opening.

Double pocket, centre opening
Double pocket, centre opening pocket door layoutTwo panels part in the middle and slide into pockets in both walls, so the whole width of the opening is clear, with no panels stacked in front of the view.Front viewpocket in wallpocket in wallclear openingFrom abovegardeninsidePanels slide on one track into a pocket on each side

Two panels part in the middle and slide into pockets in both walls, so the whole width of the opening is clear, with no panels stacked in front of the view.

Multi-panel stacking pocket
Multi-panel stacking pocket pocket door layoutSeveral panels, each on its own track, slide together into one deep pocket, so a wide opening clears from one side. We match the number of tracks to the width and to the panel sizes that can be delivered to your home.Front viewpocket in wallclear openingFrom abovegardeninsideThree panels on three tracks stack into one pocket

Several panels, each on its own track, slide together into one deep pocket, so a wide opening clears from one side. We match the number of tracks to the width and to the panel sizes that can be delivered to your home.

Corner pocket
Corner pocket pocket door layoutThe panels meet at the corner with no post and slide away into pockets in each wall, opening two sides of the room to the garden at once.Front viewpocket in wallclear openingpocket in wallclear openingcorner, no postFrom abovegardeninsideBoth panels slide awayfrom the corner into the walls

The panels meet at the corner with no post and slide away into pockets in each wall, opening two sides of the room to the garden at once.

Cortizo COR Vision


20mm
Sight-line
at the central interlock
Up to
3000mm
Max panel size
tall × 2500mm wide
From
1.3W/m²K
U-value
Up to
41dB
Acoustic
  • Frame depth116mm (2-track) · 182mm (3-track)
  • Max panel weight320kg
  • Glazing28–30mm double glazed units (the frame is too slim for triple)
  • Configurations2, 3 or 4 panels; pocket doors; 90° corners with no post
  • WeatherAir Class 4 · Water Class 7A · Wind Class C5
  • SecurityPAS 24 available, multi-point locking

Cortizo COR Vision Evolution


25mm
Sight-line
at the central interlock
Up to
3500mm
Max panel size
tall × 3500mm wide
From
0.88W/m²K
U-value
Up to
43dB
Acoustic
  • Glazing28–44mm, double or triple glazed
  • Frame depth160mm (2-track) · 248mm (3-track) · 336mm (4-track)
  • Max panel weight500kg
  • Configurations1 to 8 panels on up to 4 tracks; pocket doors; 90° corners with no post
  • WeatherAir Class 4 · Water Class E900 · Wind Class C3

Cross Section

Cortizo COR Vision profile cross section

The Cortizo COR Vision profile, cut through to show how the frame and glass fit together.

Glass Options

Every pocket sliding door is made with the glass to suit your project. These are the units we fit most, drawn to scale.

Swipe to see each unit →

ArgonLow-EcoatingWarm edgespacerSealant6186OutsideInside30 mm unit
Standard 6/18/6Two 6 mm panes, Low-E coated, with an argon-filled gap of 18 mm. The everyday choice for windows and doors.
ArgonLow-Ecoating8166OutsideInside30 mm unit
Thicker pane 8/16/6Large sliding panels get a thicker 8 mm toughened outer pane, and the very largest 10 mm, for strength and stiffness.
ArgonNoiseQuieterInterlayer0.8 mmLow-Ecoating6166.8OutsideInside28.8 mm unit
Laminated / acoustic 6/16/6.8Two 3 mm sheets bonded to a tough clear interlayer. If it breaks it holds together, and the acoustic interlayer soaks up noise from busy roads.
ArgonHeatreflectedLess heatgets inLow-Ecoating6186OutsideInside30 mm unit
Solar control 6/18/6A coating on the outer pane reflects much of the sun's heat before it gets in. For south-facing glass, roofs and extensions.
ArgonArgonLow-Ecoating6126126OutsideInside42 mm unit
Triple glazed 6/12/6/12/6Three panes, two Low-E coatings and two argon gaps for the lowest heat loss. It is the heaviest unit, so the frame has to be built to carry it.COR Vision Evolution only
In every unit
Warm edge spacer
The bar that holds the panes apart around the edge. It is made from a low-conducting composite instead of aluminium, so the edge of the glass stays warmer, with less heat loss and less condensation. It is filled with desiccant, which soaks up any moisture sealed inside so the unit never mists.
Sealant
The black outer seal bonds the panes and spacer into one unit, keeps the argon in and keeps moisture out.
Low-E coating
An invisible metal-oxide layer on the inside face of the glass that reflects heat back into the room.

We specify the optimal glass configuration for each project based on thermal performance, acoustic requirements and Building Regulations compliance.

Colours & Finishes

Every pocket sliding door we make is polyester powder coated in-house to the Qualicoat standard, in any RAL colour, matt or gloss. The colour is guaranteed for 25 years.

Popular Colours

  • RAL 7016 Anthracite Grey
  • RAL 9005 Jet Black
  • RAL 7021 Black Grey
  • RAL 9010 Pure White
  • RAL 9001 Cream White
  • RAL 7012 Basalt Grey
  • RAL 7022 Umbra Grey
  • RAL 6009 Fir Green
  • RAL 8014 Sepia Brown

Special Finishes

  • Heritage Bronze Our Alchemy range, exclusive to DTW. It has no RAL equivalent, and we can make it on sliding and pocket doors, which no one else offers.
  • Anodised Anolok or equivalent anodised shades. Ask us for details.

Matt Jet Black (RAL 9005) and Anthracite Grey (RAL 7016) are held in UK stock for COR Vision sliding doors, so they are the quickest to make.

Any standard RAL colour is available to order. Ask for a physical sample at your consultation.

Hardware

Hardware Options

Modern white sliding door lock handle with keyhole for aluminium doors.

Modern white sliding door lock handle with keyhole for aluminium doors.

Modern aluminium sliding door lock with secure latch mechanism.

Modern aluminium sliding door lock with secure latch mechanism.

Sliding door lock handle in aluminium finish for secure closure.

Sliding door lock handle in aluminium finish for secure closure.

Aluminium sliding door lock with handle and key mechanism.

Aluminium sliding door lock with handle and key mechanism.

Sliding door lock handle in silver finish.

Sliding door lock handle in silver finish.

Blue aluminium sliding door lock with keyhole for security.

Blue aluminium sliding door lock with keyhole for security.

Downloads

Gallery

Sliding pocket doors: your questions answered

What is a pocket sliding door?

A glass sliding door that slides into a pocket built inside the wall. When it is open the panels are hidden and the whole opening is clear. We make them in Cortizo aluminium, for openings onto the garden as well as inside the house.

Can pocket doors be used as external doors?

Yes. Ours are made from Cortizo's COR Vision and COR Vision Evolution sliding door systems, with double or triple glazed units, so they are built as outside doors. COR Vision is rated Air Class 4 and Water Class 7A, with multi-point locking.

How much wall space does a pocket door need?

Each pocket needs a solid length of wall at least as wide as the panel that slides into it. A single pocket door needs wall on one side, and a centre-opening pair needs wall on both sides. Stacking several panels into one pocket saves wall length, but needs a deeper wall for the extra tracks.

Can pocket doors meet at a corner?

Yes. COR Vision and COR Vision Evolution both make 90° corners with no post, so the panels meet at the corner and slide away into pockets in each wall, opening two sides of the room at once.

Can you get triple glazing in a pocket door?

On COR Vision Evolution, yes. It takes glass units from 28 to 44mm, including triple glazing, with a U-value from 0.88 W/m²K. COR Vision is slimmer and takes 28 to 30mm double glazed units only.

How much do glass pocket doors cost?

Each pocket door is made to measure, so the price depends on the size of the opening, the number of panels and tracks, the glass and the colour. Send us your drawings or measurements for a free quote, or visit one of our showrooms to see the doors in person.
